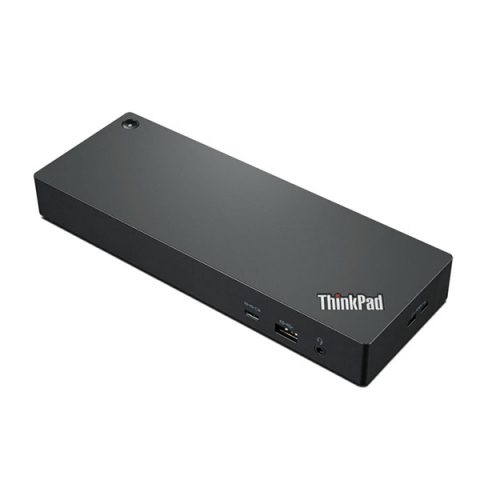

Dock ThinkPad Universal Thunderbolt 4 Dock (40B00135AE)

Physical Specifications:

• Thunderbolt Port:
  • One Thunderbolt Port - for Host connect
  • One Thunderbolt Port - for Device connect
• Video Ports:
  • One HDMI 2.1
  • Two DisplayPort 1.4
• USB Ports:
  • Four USB
  • One USB-C
• Audio Ports: 3.5mm Audio combo Jack
• Ethernet: Gigabit Ethernet
• Physical Security Feature:
  • One NanoSaver lock slot
  • One MicroSaver lock slot
• Maximum number of external Monitors: 4
• Charging Port: DC-IN
• Color: Black/Red
• Dock Measurements:
  • Length: 220 mm (8.7 inches)
  • Depth: 80 mm (3.1 inches)
  • Height: 30 mm (1.2 inches)
  • Weight: 0.45Kg (1.0 lb)

Package Specification:

• Packed Dimensions:
  • Length: 270 mm (10.6 inches)
  • Depth: 195 mm (7.7 inches)
  • Height: 85 mm (3.3 inches)
  • Weight: 1.2 Kg (2.6 lb)

Electrical Specifications

• Input Power: 20V 6.75A
• Power Delivery: Yes
• Output Power: Max 100W
• Power Button: Yes
• Power Plug: Slim Tip

Operating Environment:

• Minimum Operating Temperature: 0 celsius
• Maximum Operating Temperature: 40 celsius
• Minimum Relative Humidity (%): 5
• Maximum Relative Humidity (%): 95

Maximum Resolution Support and Refresh Rate:

• One at: 8K 30Hz Via HDMI 2.1
• Four at: 4K 60 Hz

Operating System Requirements

• Microsoft Windows 11 64-bit
• Microsoft Windows 10 64-bit
• Linux Ubuntu 22.04

Shipment Group

• ThinkPad Universal Thunderbolt 4 Dock
• 135W AC Power Adapter (Slim Tip)
• Power cord
• Setup Poster, Warranty Statement
• Thunderbolt 4 Passive Cable (0.7-meter, 27.5-inch)
